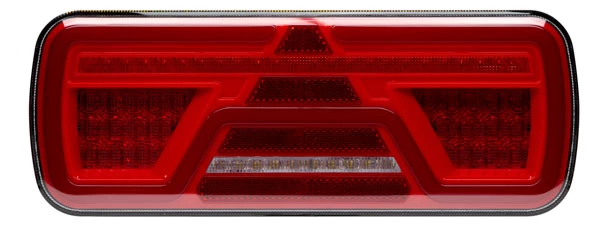

LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Fog /Ref LH 360x135mm Sequential

ROADVISION’s BR360 Series are the complete all-in-one fit and forget solution. Featuring the latest sequential indicator technology, the BR360 Series deliversstop/tail, reverse, fog, retro reflector and a sequential indicator that flashes progressively offering an increased level of safety. Constructed with durablepolycarbonate lenses and housings, the BR360 Series will survive the toughest environments. Dust & water proof to IP67 and with a life span rated at 100,000hours, the BR360 Series is totally maintenance free. With ROADVISION it’s FIT and FORGET.

• Housing Material High Impact ABS
• Mounting Hole Centre to Centre X 152mm Stud Centres
• Lens material Polycarbonate
• Specification1 Wire Colour Code: Earth – Black, Stop – Red/Blue,
• Input Voltage 10-30V DC
• Dimensions 360 x 135 x 36mm
• Number of LED’s Indicator – 24 LEDs, Stop – 12 LEDs, Tail – 60 LED
• Current Draw Ind – 0.2A, S/T – 0.2/0.3A, Rev – 0.3A, Fog – 0.4A
• Cable Length 300mm Sheathed
• Approvals Ind – E9-6R01/28-22818-00, S/T – E9-7R02/27-22818-
