Dometic Electrolux Rangehood Surface Mount

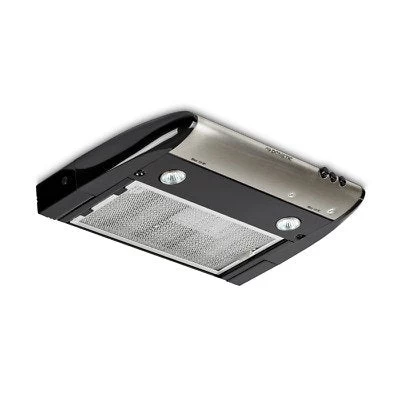

Dometic/Electrolux Rangehood 12V, Front, (CK155), for caravans and motorhomes.

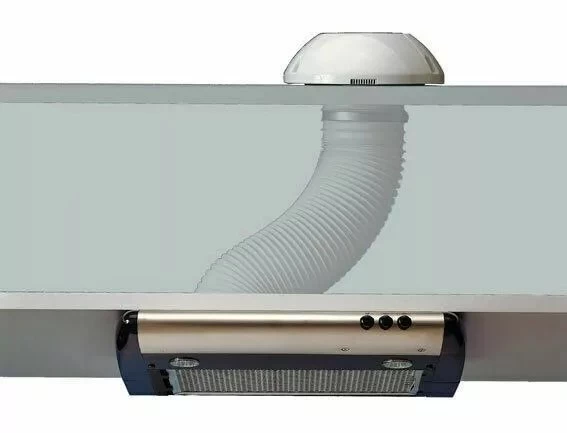

This new attractively shaped cooker hood with its connectible 2-stage fan ensures quick and effective remedy. It features extremely efficient power. The 12 Volt motor is integrated in the roof dome (not in the appliance itself), and is smaller than in previous models.

The result: better air flow and more power, depending on how you set the controls – between 50 and 100 m3/h and the built-in halogen lights come in really handy when cooking.

• Fan motor 30 Watts, 12 Volt, capacity 100 m3/h.
• Halogen lights: 2×10 Watts, 12 Volt.
• Filter screen measurements: width 170 mm, depth 130 mm.
• Two speeds.

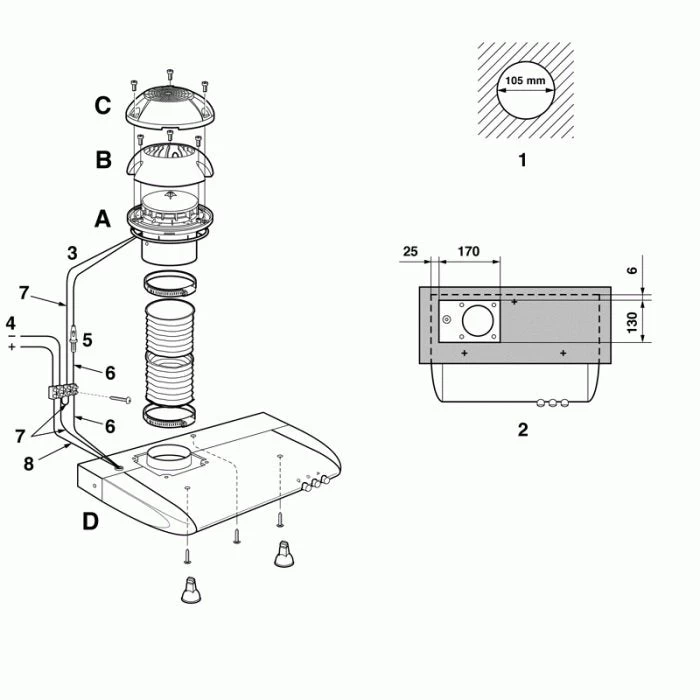

• The cut-out of 170×130 mm has to be placed 25 mm from the left side and 6 mm from the rear edge.
• The 170 mm-length is parallel to the rear edge.
• The exposed vent is 399mm x 277mm (depth 71mm)
• The cut-out through the roof has the diameter 105 mm (the ventilator GY 11).
• The CK 155 has to be placed at a minimum distance of 50 cm from any open flame.
• Detachable, washable filter grille.
• 1 year warranty.
