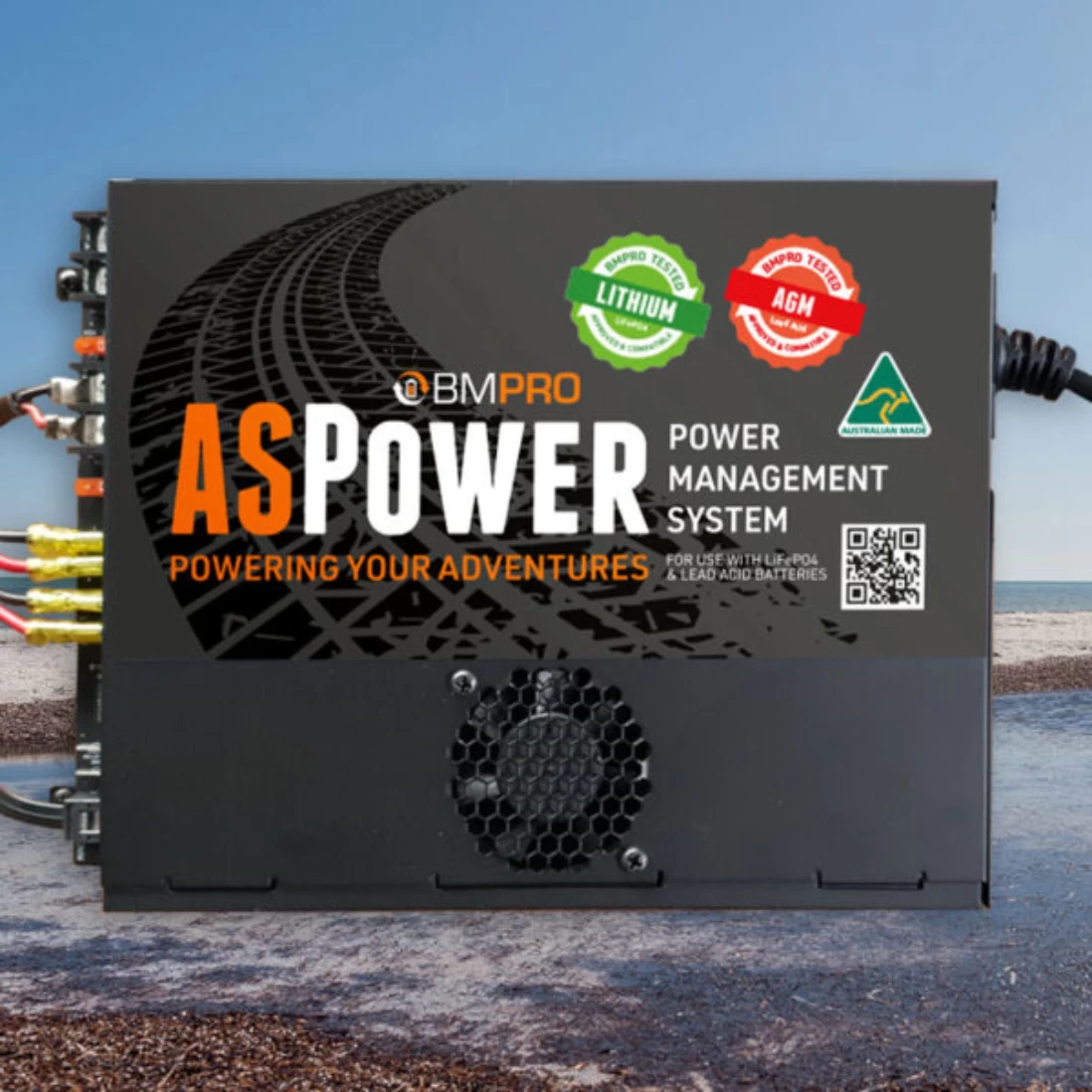

BMPRO Aspero Power Management System

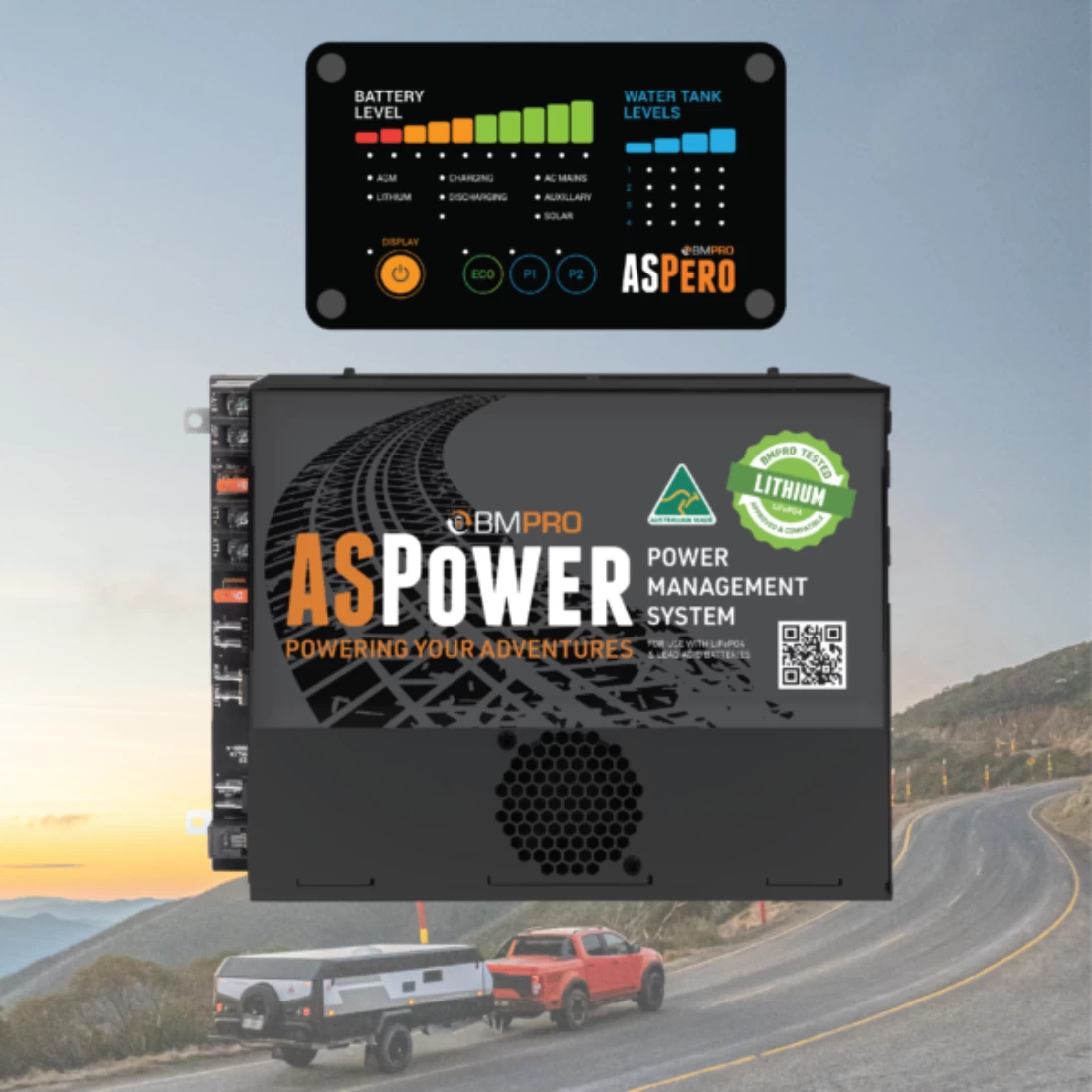

Power Management System and Information Display

·    Complete power management & monitoring system for RVs

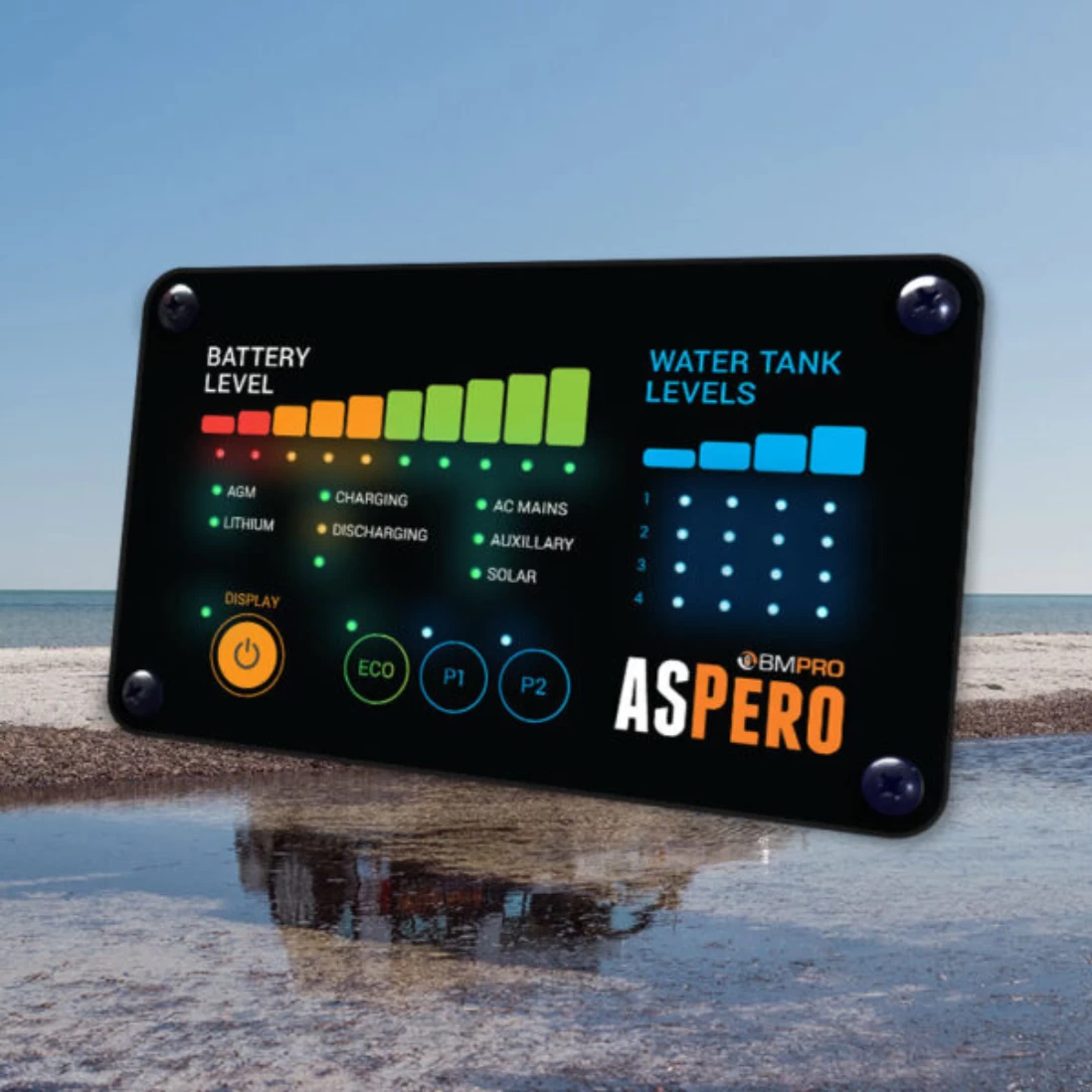

·    Monitor battery status & water tank levels

·    Multi-input – AC/Solar/DC

·    Charges all RV battery types

*Battery chemistry can only be altered or changed with the use of an ASDisplay



• Input Voltage Range 110-240V AC ± 10%, 50-60Hz
• Output Current 35A (Load + Batter y Current)
• Factory Set Voltage 13.65V (Float Voltage)
• Output Ripple Voltage <150mV
• Battery Current Limit max. 30A
• Low Voltage Disconnect (Lead Acid) 10.5V ± 0.2V
• Battery Connect after LVD (Lead Acid) 12.8V ± 0.2V
• Low Voltage Disconnect (LiFePO4) 12.0V ± 0.2V
• Battery Connect after LVD (LiFePO4) 13.8V ± 0.2V
• Battery Drain <15mA (when in Storage Mode)
• AC/DC Efficiency >83%
• Cooling Fan Thermally Controlled
• Solar Output Current 30A (nominal)
• Solar Start Voltage 17.5V
• Solar Input Voltage (after start-up) 15-25V
• Ambient Temperature 0-50 °C
• Communication Communication bus available
• Weight 2kg
